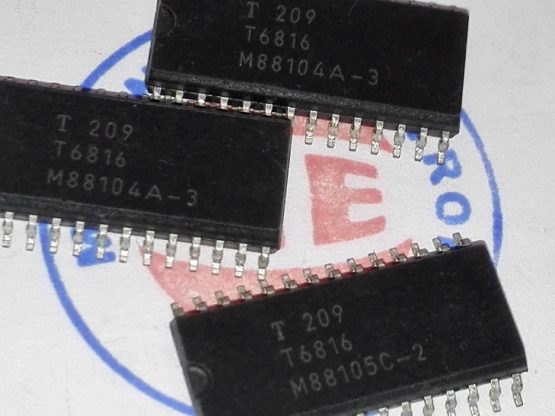

T6816

Kota Asal Pengiriman : Kota Tangerang Selatan

Features
• Six High-side and Six Low-side Drivers
• Outputs Freely Configurable as Switch, Half Bridge or H-bridge
• Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Resistors, Capacitors
and Inductors
• 0.6A Continuous Current per Switch
• Low-side: RDSon < 1.5Ω versus Total Temperature Range
• High-side: RDSon < 2.0Ω versus Total Temperature Range
• Very Low Quiescent Current Is < 20 µA in Standby Mode
• Outputs Short-circuit Protected
• Overtemperature Prewarning and Protection
• Undervoltage Protection
• Various Diagnosis Functions such as Shorted Output, Open Load, Overtemperature
and Power Supply Fail
• Serial Data Interface
• Operation Voltage up to 40V
• Daisy Chaining Possible
• SO28 Power Package

Category: Tag:

Description

Features
• Six High-side and Six Low-side Drivers
• Outputs Freely Configurable as Switch, Half Bridge or H-bridge
• Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Resistors, Capacitors
and Inductors
• 0.6A Continuous Current per Switch
• Low-side: RDSon < 1.5Ω versus Total Temperature Range
• High-side: RDSon < 2.0Ω versus Total Temperature Range
• Very Low Quiescent Current Is < 20 µA in Standby Mode
• Outputs Short-circuit Protected
• Overtemperature Prewarning and Protection
• Undervoltage Protection
• Various Diagnosis Functions such as Shorted Output, Open Load, Overtemperature
and Power Supply Fail
• Serial Data Interface
• Operation Voltage up to 40V
• Daisy Chaining Possible
• SO28 Power Package
