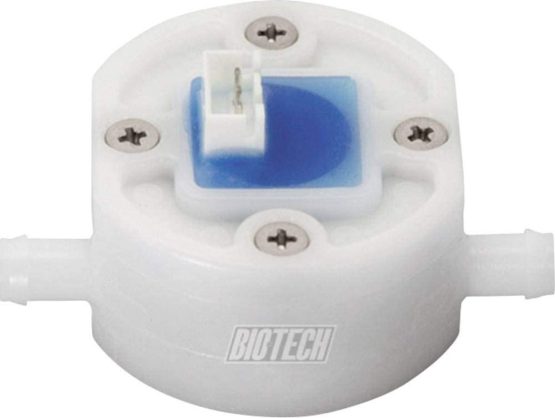

B.I.O-TECH e.K. FCH-M-POM-LC (G 1/8) Flow Meter

FCH-M-POM-LC (G 1/8)

Kota Asal Pengiriman : Kota Tangerang Selatan

Type	FCH-M-POM-LC (G 1/8)
Min. operating voltage	5 V DC
Max. operating voltage	24 V DC
Operating voltage	5 – 24 V DC
Connector	Plug (3-pin)
Material	Polyacetal (POM)
Sealant	FKM
Max. operating pressure	4 bar
Accuracy ±	2 %
Reading range (min.)	0.05 l/min

Reading range (max.)	3 l/min
Reading range	0.05 – 3 l/min
Min. ambient temperature	-10 °C
Max. ambient temperature	+80 °C
Length	51.2 mm
Width	40 mm
Height	26.5 mm
Dim	(L x W x H) 51.2 x 40 x 26.5 mm
Content	1 pc(s)
Material (details)	POM, O-Ring: FKM
Output current (details)	20 mA
Current consumption	8 mA
Type	FCH-m-POM-LC
Connection	2 x 9.73 mm (G 1/8″) + 2 x M5
Temperature range	-20 – +60 °C
Reading range	(with nozzle 1 mm) 0.01 – 1.0 l/min/(without nozzle, D = 3 mm) 0.05 – 3.5 l/min
Operating voltage	5 – 24 V DC
Product type	Flow sensor

Category: Sensor

Description

Description

Type	FCH-M-POM-LC (G 1/8)
Min. operating voltage	5 V DC
Max. operating voltage	24 V DC
Operating voltage	5 – 24 V DC
Connector	Plug (3-pin)
Material	Polyacetal (POM)
Sealant	FKM
Max. operating pressure	4 bar
Accuracy ±	2 %
Reading range (min.)	0.05 l/min

Reading range (max.)	3 l/min
Reading range	0.05 – 3 l/min
Min. ambient temperature	-10 °C
Max. ambient temperature	+80 °C
Length	51.2 mm
Width	40 mm
Height	26.5 mm
Dim	(L x W x H) 51.2 x 40 x 26.5 mm
Content	1 pc(s)
Material (details)	POM, O-Ring: FKM
Output current (details)	20 mA
Current consumption	8 mA
Type	FCH-m-POM-LC
Connection	2 x 9.73 mm (G 1/8″) + 2 x M5
Temperature range	-20 – +60 °C
Reading range	(with nozzle 1 mm) 0.01 – 1.0 l/min/(without nozzle, D = 3 mm) 0.05 – 3.5 l/min
Operating voltage	5 – 24 V DC
Product type	Flow sensor
